Valves

Functioning and high performance valves are a key component of your compressor. ACI has extensive experience diagnosing value issues and creating solutions.

Learn About our Valve Solutions

ACI offers a complete line of proprietary designed compressor valves. Valve type and internals are selected to provide optimized service and performance under varied operating conditions. Compressor valving is a science in itself and requires more detail than the below general outline provides.

ACI offers a complete line of proprietary designed compressor valves. Valve type and internals are selected to provide optimized service and performance under varied operating conditions. Compressor valving is a science in itself and requires more detail than the below general outline provides.

ACI Services, Inc. manufactures replacement poppets for most poppet valves. These carry a full money back satisfaction guarantee and are usually shipped on the day your order is placed. Custom colors of nylon poppets are available in quantities of 1000 or greater with typical deliveries of 30 days.

Improving the scavenging valves of your Worthington®, Clark® , Ajax® and Cooper-Bessemer® integral engines can help reduce fuel costs, emissions, operating costs, and possibly even inventories.

Each of the four main types of poppet valves is suited to a particular application scenario.

Single Deck Valves

Single deck valves have only one layer of poppets, rings, or plates. They are used in compressors where it is necessary to keep the fixed clearance low. This is usually the case with high speed compressors, and some low speed compressors.

Generally if the pressure ratio is over 2, it is highly likely that most of the valves will be single decks.

These have less flow area than double deck valves or deck and a half valves which will result in taking more energy to push the gas through the valves.


Deck and a Half Valves

These valves have two layers of poppets, rings, channels, strips, or plates. These are usually used in low pressure ratio applications such as transmission of natural gas.

These valves have more flow area than single deck valves and require considerably less energy to push the gas through the valves.

These valves typically have slightly less fixed clearance than double deck valves.


Double Deck Valves

Double deck valves have two layers or levels of poppets, rings, channels, strips, or plates. These may be used in applications such as transmission of natural gas where the compressors operate at rather low pressure radios (usually less than 1.5)

They typically have more flow area than single deck valves, which results in lower energy required to push the gas through the valve.

If compressors are overloaded a lot of the time, changing from single deck valves to double deck valves may help to unload the compressor by adding to fixed clearance and by improving the efficiency of the compressor.

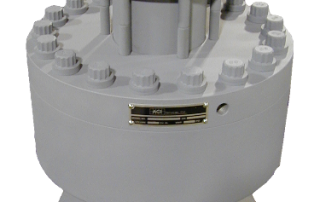

These valves have quite a lot of fixed clearance and are therefore not used in applications with pressure ratios over about 2.0, unless they are needed to allow gas to flow into and out of valve cap clearance pockets

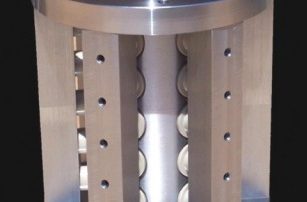

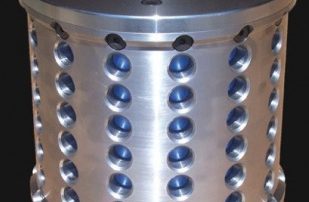

Radial Valves

Radial valves made by ACI Services, Inc. have the most flow area of any available valve.

Typically these have 2 to 2 1/2 times the flow area of single deck valves.

These have poppets that are arranged to seat on a cylindrical surface. Radial suction valves have the poppets seat on the inside of a sleeve, and radial discharge valves have the poppets seat on the outside of a sleeve.

The fixed clearance associated with radial valves is comparable to that in double deck valves.

These extremely efficient valves manufactured by ACI Services, Inc. are justified in cases where the cylinders have limited valve area available and may result in reducing the energy required to push the gas through the valves by 50% or more.
